VEHICLE ROLLOVER AND ROOF STRENGTH

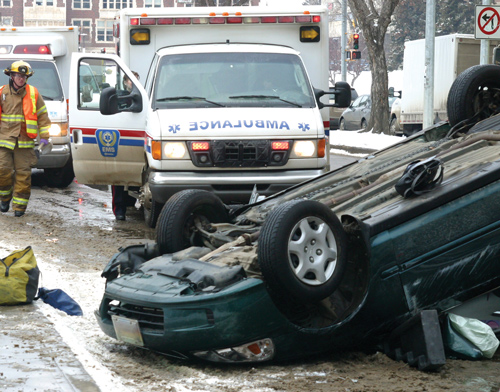

Jack Dagley Photography / Shutterstock.com

1. Are rollovers a big problem?

A vehicle is classified as rolling over if it tips onto its side or roof at any time during a crash. Many rollovers lead to partial or full ejection of occupants from the vehicle increasing the likelihood of injury or death. Vehicles roll over in less than 3 percent of all crashes, but these crashes account for more than a third of passenger vehicle occupant deaths. In 2010, 22,263 passenger vehicle occupants died in crashes of all kinds. Of those, 7,688 died in crashes where their vehicle rolled over.

2. What causes a rollover?

Most rollovers occur when a driver loses control of a vehicle, and it begins to slide sideways. When this happens something can "trip" the vehicle and cause it to roll over. This tripping object could be a curb, guardrail, tree stump or soft or uneven ground on the side of the roadway. Rollovers also can occur when a driver attempts to turn a vehicle too aggressively — at a high velocity or with a tight turning radius. In such conditions, the frictional force between the tires and road surface can cause the vehicle to tip up and then roll over.

These crashes generally are referred to as "untripped" or "frictional" rollovers. Less frequently, rollovers can happen when one side of a vehicle is flipped up suddenly by a guardrail or ramp like object or when a vehicle falls sideways or front first down an embankment.

The forces in a multiple vehicle crash may also cause a vehicle to roll. For example, a vehicle struck in the side may be pushed over by the striking vehicle. However, about three-fourths of rollover deaths occur in single vehicle crashes. More than half of all occupants killed in single vehicle crashes are involved in rollovers.

3. Are rollovers more common for SUVs than for other vehicles?

Rollovers are much more common for SUVs and pickups than for cars, and more common for SUVs than for pickups. In 2010, 57 percent of SUV occupants killed in crashes were in vehicles that rolled over. In comparison, 46 percent of deaths in pickups and 24 percent of deaths in cars were in rollovers.

Pickups and SUVs tend to be involved in rollovers more frequently than cars largely due to the physical differences of these vehicles. Light trucks are taller than cars and have greater ground clearance causing their mass to be distributed higher off the road relative to the width of the vehicle. Additional passengers and cargo can increase the center of gravity even more. Other things being equal, a vehicle with a higher center of gravity is more prone to roll over than a lower riding vehicle.

Driver behavior may contribute to the increased rollover involvement rate of SUVs and pickups. Pickups and SUVs are more likely than cars to be driven on rural roads where rollovers occur more frequently. Lower belt use among pickup occupants means they are more likely to be seriously or fatally injured when rollovers occur.

4. How has the number of rollover fatalities changed over time?

The annual number of fatalities in rollover crashes on U.S. roads has increased as SUVs have become more popular. However, the size of the U.S. vehicle fleet has grown more rapidly than the number of rollover fatalities, so the fatality rate based on the number of registered passenger vehicles in the fleet has declined consistently during the past 20 years, from 34 driver deaths per million registered vehicles in
1990 to 11 deaths per million in 2010. The percentage of fatalities in rollover crashes for each vehicle type has remained relatively unchanged.

5. What has been done to reduce the occurrence of rollovers?

Manufacturers have created more stable vehicle designs. The static stability factor (SSF), a measurement of a vehicle's geometrical ability to resist rollover, increased an average of 6 percent for new SUVs between 1998 and 2003 after remaining constant for 20 years.

SSF is calculated by dividing half of a vehicle's track width (the distance between the right and left tires) by its center of gravity height. Wider vehicles with centers of gravity closer to the ground tend to be more stable, but this measurement does not account for dynamic effects such as those due to a vehicle's suspension.

Electronic stability control (ESC) helps prevent the sideways skidding and loss of control that can lead to rollovers. The percentage of new passenger vehicle models with standard ESC increased from 9 percent in the 2000 model year to 85 percent in the 2010 model year. Beginning with the 2012 model year, all passenger vehicles must be equipped with ESC.

6. What are the rollover resistance ratings assigned by NHTSA?

Since 2001 the National Highway Traffic Safety Administration (NHTSA) has assigned rollover resistance ratings to vehicles (1 to 5 stars). These ratings can provide some indication about which specific vehicles are more likely to be involved in rollover crashes. Between 2001 and 2003, the ratings were calculated using SSF only. Beginning in 2004, the rollover resistance rating system was revised to combine the SSF with results from a dynamic handling test, but this test changes the star ratings of only a few vehicles.

7. How does electronic stability control work?

ESC is a vehicle control system comprised of sensors, brakes, engine control modules and a microcomputer that continuously monitors how well a vehicle responds to a driver's steering input. The computer compares a driver's commands to the actual travel of the vehicle.

In general, when the sensors indicate the vehicle is leaving the intended line of travel, ESC applies the brake pressure needed at each wheel to bring the vehicle back on track. In some cases, ESC also reduces engine speed. ESC has been found to reduce single vehicle fatal crash involvement risk by 51 percent and could reduce the risk of rolling over by 75 percent for SUVs and by 72 percent for cars.

8. What can be done to reduce the likelihood and severity of injuries when rollovers occur?

Safety belt use is one of the most effective ways to reduce the risk of injury or death in a rollover. Sixty-eight percent of people killed in passenger vehicle rollover crashes in 2010 were unbelted. Without safety belts, occupants in vehicles that roll can be thrown from the vehicle greatly increasing the risk of serious injury or death.

When occupants are contained in the vehicle during a rollover, the performance of restraint systems and structural components is crucial to preventing injury. Head protecting side curtain airbags triggered by rollover sensors can prevent the upper body from contacting the ground and also prevent occupants from being ejected from the vehicle.

Good safety belt designs are important to hold occupants in their seats and away from the roof as much as possible. Finally, the roof and other vehicle structures must be strong enough to resist occupant compartment intrusion that can increase the risk of head and neck injury.

9. Does roof strength matter in rollovers?

During the past 30 years, there has been much debate about the association between roof crush in rollovers and serious head and neck injuries. Some studies have reported that roof strength and injury are not causally related but that occupants are injured as they "dive" into the roof before it crushes. Conversely, other researchers maintain that injuries occur when the roof buckles into the occupant compartment and contacts the people inside.

The debate about how people are injured in rollovers has obscured the fact that a strong vehicle "safety cage" is an essential part of crash worthiness design in all types of crashes. Institute testing using front and side impact configurations shows that limiting intrusion in the occupant compartment is necessary to provide space for the occupant restraint systems to prevent injury. The same principle applies to rollovers.

A 2008 Institute study found that strong roofs reduce the risk of fatal or incapacitating injury in rollover crashes. This was confirmed by a second IIHS study using a different set of vehicles. These were the first studies to demonstrate the link between roof strength and injury risk. They showed that stronger roofs reduce the risk of ejection and the risk of injury for occupants remaining in the vehicle. Since then, two NHTSA studies have produced a similar finding when taken together. They first found that reduced roof intrusion is associated with lower injury risk, and the second showed a relationship between higher roof strength and lower roof intrusion.

While the crash databases used in the studies did not specify how occupants were ejected, it is possible that strong roofs allow windshields and side windows to remain intact and doors to remain closed more often in rollovers. Other research has found these openings are common causes of ejection.

10. Does roof strength still matter now that all vehicles have ESC?

Even though all new vehicles are equipped with ESC, rollover crashes will continue to occur. NHTSA estimates that 5,000 to 6,000 rollover fatalities per year would still occur in a fleet fully equipped with ESC.
ESC can help a driver maintain control in some situations but not all. For example, ESC may not prevent a rollover initiating impact with another vehicle or with a roadside obstacle, tire failure or complete loss of traction with the road surface due to weather conditions. Vehicles with ESC still need strong roofs and effective restraint systems to protect occupants in rollover crashes.

11. What is the current federal standard for rollover crash worthiness? What changes have been announced?

Federal Motor Vehicle Safety Standard (FMVSS) No. 216, Roof Crush Resistance, establishes a minimum requirement for roof strength to "reduce deaths and injuries due to the crushing of the roof into the occupant compartment in rollover crashes." In this test, a rigid plate is pushed into one side of the roof at a constant speed. The roof must be strong enough to prevent the plate from moving 5 inches when pushed at a force equal to 1½ times the weight of the vehicle. The test went into effect in 1973 and remained essentially unchanged until an updated rule was announced in 2009.

The new rule will require that a roof withstand an applied force equal to 3 times the vehicle's weight while maintaining sufficient headroom for an average size adult male. While both sides of a vehicle's roof were required to meet the former standard, only one side was tested on any given vehicle.
The new rule requires a second test of the same vehicle's roof on the opposite side. The new standard is being phased in beginning with 2013 model vehicles, and by the 2017 model year 100 percent of each manufacturer's fleet must comply.

The updated FMVSS 216 will regulate the roof strength of many SUVs and pickup trucks by extending coverage to vehicles with gross weight ratings (GVWRs) up to 10,000 pounds. GVWR is the weight of the vehicle plus the maximum load of passengers and cargo specified by the manufacturer. In the past, the standard applied only to vehicles with GVWRs up to 6,000 pounds which meant about 44 percent of the SUV and pickup fleets were exempt.

While the updated roof strength regulation applies to these vehicles, they won’t be subject to the same force requirements. Instead of a force equal to 3 times the vehicle's weight vehicles with GVWRs over 6,000 pounds will be subject to a force equal to 1½ times their weight.

12. Why does IIHS rate roof strength?

The Institute began publishing roof strength ratings in March 2009 after its research established that strong roofs reduce the risk of fatal or incapacitating injury in rollover crashes. At the time, the government was in the process of updating its outdated requirements for roof strength, but that effort was repeatedly delayed, and consumers had nowhere to turn for information on roof strength.

To qualify for a good roof strength rating from the Institute a vehicle must be able to withstand a force equal to 4 times its weight prior to 5 inches of crush. The government's updated regulation, which was finally announced in May 2009, eventually will force vehicles with gross weight ratings of 6,000 pounds or less to have roofs nearly as strong as that required for a good rating.

The Institute is continuing its roof strength rating program, however, in part because it allows consumers to identify which vehicles already have stronger roofs ahead of the government's deadline. It also may encourage manufacturers to make roofs even stronger than the new regulation will require, especially for heavier vehicles subject to the less strict requirements. Finally, the rating program will allow IIHS researchers to determine whether additional benefits exist for roofs stronger than those studied in the past.

13. Should dynamic tests of roof strength in rollovers be conducted?

The current federal test addresses only the structural aspect of rollover crash worthiness. However, beginning with 2014 models, new regulation will apply to restraint systems such as side curtain airbags. The intent of the standard is to ensure that, when deployed, such systems are sufficiently large and strong enough to prevent ejection through the side windows. While this could be a positive step for further reducing rollover injuries, the standard will not test whether the restraint systems actually deploy properly in rollover crash conditions.

Dynamic testing that simulates an actual rollover offers the possibility of evaluating the effects of vehicle structure, occupant restraint systems and occupant movements in an overall crash worthiness assessment. Dynamic testing also may more accurately reproduce the forces acting on roofs in real world crashes than the test method used by the government and in the IIHS roof strength rating program.

However, because there is a wide range of rollover crashes, it is difficult to identify a single dynamic evaluation that is representative of most rollovers. Repeatability has been a problem with dynamic tests as slight differences from one test to the next can significantly change the outcome. In addition, more research is needed to determine how to use dummies in rollover tests in a way that represents the movements and injury risks of people in real crashes. While certain dynamic tests hold promise more work is necessary to address these issues.
