NEW DRUG DELIVERY CAPSULE MAY REPLACE INJECTIONS

Pill coated with tiny needles can deliver drugs directly into the lining of the digestive tract

CAMBRIDGE, MA - Given a choice, most patients would prefer to take a drug orally instead of getting an injection. Unfortunately, many drugs, especially those made from large proteins, cannot be given as a pill because they get broken down in the stomach before they can be absorbed.

To help overcome that obstacle researchers at MIT and Massachusetts General Hospital (MGH) have devised a novel drug capsule coated with tiny needles that can inject drugs directly into the lining of the stomach after the capsule is swallowed. In animal studies the team found that the capsule delivered insulin more efficiently than injection under the skin, and there were no harmful side effects as the capsule passed through the digestive system.

“This could be a way that the patient can circumvent the need to have an infusion or subcutaneous administration of a drug,” says Giovanni Traverso, a research fellow at MIT’s Koch Institute for Integrative Cancer Research, a gastroenterologist at MGH, and one of the lead authors of the paper which appears in the Journal of Pharmaceutical Sciences.

Although the researchers tested their capsule with insulin, they anticipate that it would be most useful for delivering biopharmaceuticals such as antibodies which are used to treat cancer and autoimmune disorders like arthritis and Crohn’s disease. This class of drugs, known as “biologics,” also includes vaccines, recombinant DNA, and RNA.

“The large size of these biologic drugs makes them nonabsorbable. And before they even would be absorbed, they’re degraded in your GI tract by acids and enzymes that just eat up the molecules and make them inactive,” says Carl Schoellhammer, a graduate student in chemical engineering and a lead author of the paper.

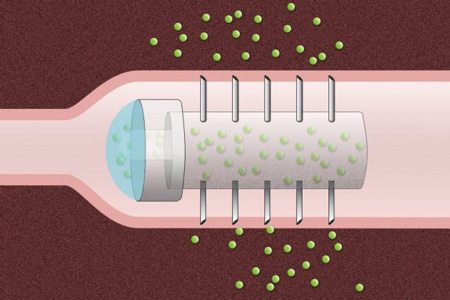

A schematic drawing of a microneedle pill with hollow needles. When the pill reaches the desired location in the digestive tract, the pH-sensitive coating surrounding the capsule dissolves, allowing the drug to be released through the microneedles.

Image: Christine Daniloff/MIT, based on images by Carol Schoellhammer and Giovanni Traverso

Safe and effective delivery

Scientists have tried designing microparticles and nanoparticles that can deliver biologics, but such particles are expensive to produce and require a new version to be engineered for each drug.

Schoellhammer, Traverso, and their colleagues set out to design a capsule that would serve as a platform for the delivery of a wide range of therapeutics, prevent degradation of the drugs, and inject the payload directly into the lining of the GI tract. Their prototype acrylic capsule, 2 centimeters long and 1 centimeter in diameter includes a reservoir for the drug and is coated with hollow, stainless steel needles about 5 millimeters long.

Previous studies of accidental ingestion of sharp objects in human patients have suggested that it could be safe to swallow a capsule coated with short needles. Because there are no pain receptors in the GI tract, patients would not feel any pain from the drug injection.

To test whether this type of capsule could allow safe and effective drug delivery the researchers tested it in pigs with insulin as the drug payload. It took more than a week for the capsules to move through the entire digestive tract, and the researchers found no traces of tissue damage supporting the potential safety of this novel approach.

They also found that the microneedles successfully injected insulin into the lining of the stomach, small intestine, and colon, causing the animals’ blood glucose levels to drop. This reduction in blood glucose was faster and larger than the drop seen when the same amount of glucose was given by subcutaneous injection.

“The kinetics are much better, and much faster onset than those seen with traditional under the skin administration,” Traverso says. “For molecules that are particularly difficult to absorb this would be a way of actually administering them at much higher efficiency.”

This therapeutic use illustration of the microneedle pill shows the use of hollow needles and solid needles made from sugars or polymers. In both cases, the pill’s needles are initially coated by a pH-responsive coating to aid in ingestion (left). When the pill has reached the desired location in the GI tract, the coating dissolves, revealing the microneedles (middle). In the case of hollow microneedles (top right), the drug reservoir is compressed through peristalsis, releasing the drug through the needles. In the case of solid microneedles (bottom right), the drug is formulated into the microneedles.

Image: Carol Schoellhammer and Giovanni Traverso

Further optimization

This approach could also be used to administer vaccines that normally have to be injected, the researchers say.

The team now plans to modify the capsule so that peristalsis, or contractions of the digestive tract, would slowly squeeze the drug out of the capsule as it travels through the tract.

They are also working on capsules with needles made of degradable polymers and sugar that would break off and become embedded in the gut lining, where they would slowly disintegrate and release the drug. This would further minimize any safety concern.

Avi Schroeder, a former Koch Institute postdoc, is also a lead author of the paper. The senior authors are Robert Langer, the David H. Koch Institute Professor at MIT and a member of the Koch Institute, the Institute for Medical Engineering and Science (IMES), and the Department of Chemical Engineering; Daniel Blankschtein, the Herman P. Meissner Professor of Chemical Engineering; and Daniel Anderson, the Samuel A. Goldblith Associate Professor of Chemical Engineering and a member of the Koch Institute and IMES.

Written by Anne Trafton, MIT News Office
